A comprehensive safety package is included as standard on all SANY telehandlers.
+ ROPS/FOPS fully certified cab for safe operation
+ Precise weight management system
+ Chassis levelling for safer lifting
+ Low boom profile for maximum visibility
+ Operator present seat switch and high-viz seatbelt
+ Integrated reversing camera, coupled with distance sensor
+ Reversing alarm and side and rear mirrors
+ LED work lights positioned on the cab and boom for low light working conditions
The operators cab of the telehandler series has been designed in Germany and is a highlight for any operator. It provides maximum comfort and pleasant working conditions due to numerous standard features.
+ Adjustable air-suspension seat
+ Inclinable and telescopic steering column for the perfect operating position
+ 10-inch touchscreen colour display with encoder control and intuitive user navigation
+ Quiet, low vibration engine (74 dB) so noise levels are kept to a minimum
+ Air-conditioning
+ Radio with Bluetooth and USB connector
+ Storage within the arm rest and cup and bottle holders
+ All maintenance and daily checks can be performed from ground level
+ Filters are centrally located for quick and easy access
+ Engine access is possible from three sides and the battery can be easily reached via an upwards-folding step under the cab
+ 500 hrs service intervals
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 3-year/3000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
|
ENGINE
|
|
|
Model
|
Deutz TD 3.6L
|
|
Rated power
|
55 kW / 2,600 rpm
|
|
Max. torque
|
340 Nm/1,500 rpm
|
|
Battery
|
12 V
|
|
|
|
|
HYDRAULIC SYSTEM
|
|
|
Hydraulic pump type
|
Gear with priority valve
|
|
System pressure
|
280 bar
|
|
Hydraulic flow
|
100 l/min
|
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
|
Fuel tank
|
150 l
|
|
Hydraulic system
|
120 l
|
|
|
|
|
OPERATING WEIGHT
|
10,980 kg
|
|
|
|
|
PERFORMANCE PARAMETERS
|
|
|
Maximum lift capacity
|
4,000 kg
|
|
Lift capacity at maximum height
|
3,000 kg
|
|
Lift capacity at maximum reach
|
1,250 kg
|
|
Lift height
|
13,970 mm
|
|
Carriage crowd angle
|
37°
|
|
Carriage dump angle
|
13°
|
|
Frame levelling +/-
|
9°
|
|
Outside turning radius (4WS)
|
3,850 mm
|
|
Auxiliary hydraulic flow
|
60 l/min
|
|
Auxiliary hydraulic pressure
|
28 MPa
|
|
Noise at driving position (55 kW)
|
75 Lpa
|
|
Noise to environment (55 kW)
|
83 Lwa
|
|
|
|
|
DIMENSIONS
|
|
|
Length to front of carriage
|
6,160 mm
|
|
Overall width
|
2,420 mm
|
|
Height over cab without beacon
|
2,590 mm
|
|
Height over cab with beacon
|
2,720 mm
|
|
Wheelbase
|
2,750 mm
|
|
Overall cabin width
|
950 mm
|
|
Ground clearance
|
370 mm
|
|

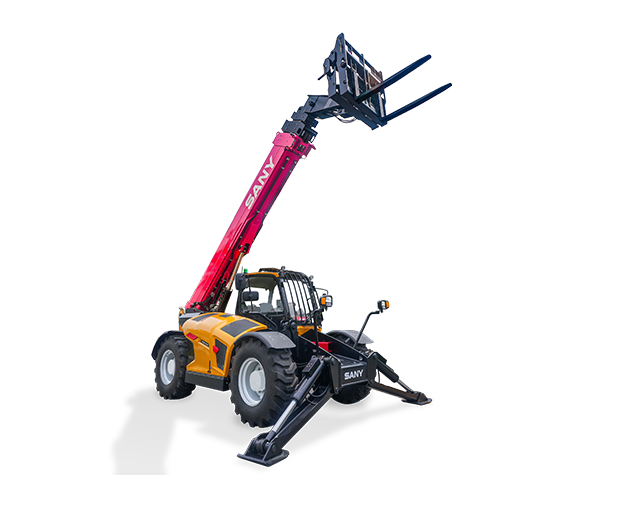

Overall width stabilisers fully deployed
|
2,570 mm
|
|
Turning radius over tyres
|
3,850 mm
|
|
|
|
