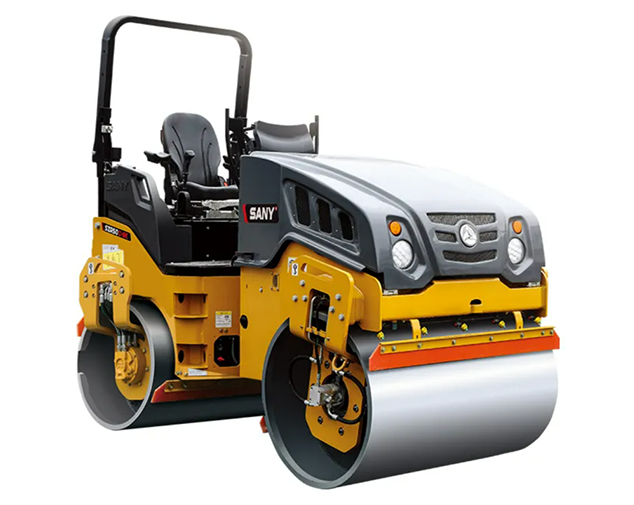

The STR50C-8K is fully equipped for safe working.
+ Foldable ROPS with multiple pre-cut mounting holes for accessories
+ Excellent visibility all around
+ Lockable battery isolator and emergency stop button
+ Reverse alarm, warning beacon and green seat belt beacon
Ease of use and flexibility make the STR50C-8K a comfortable place to work.
+ Dual operator levers
+ Sliding comfort seat
+ LED working and road lights for maximum productivity in low and/or poor light conditions
+ Clear 7-inch information display for simple and easy to use operation
+ Maintenance free, bolted centre joint
+ 500 hour service intervals
+ PIN code enabled ignition
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 5 year / 3000 hour warranty as standard for complete peace of mind (terms and conditions)
|
ENGINE
|
|
|
Model
|
Kubota D2607
|
|
Rated power
|
36.5 kW
|
|
Emission
|
EU Stage V / EPA Tier 4
|
|
Storage battery (V x Ah)
|
12 x 60
|
|
|
|
|
LOAD
|
|
|
Average static linear load
|
1,630 kg/m
|
|
|
|
|
CAPACITIES
|
|
|
Water tank
|
310 l
|
|
Fuel tank
|
68 l
|
|
Hydraulic oil tank
|
40 l
|
|
|
|
|
OPERATING WEIGHT
|
4,500 kg
|
|
|
|
|
PERFORMANCE PARAMETERS
|
|
Steering angle
|
+32°
|
|
Swing angle
|
+8°
|
|
Min. turning outside diameter
|
2,800 mm
|
|
|
|
|
COMPACTION
|
|
|
Vibration frequency
|
55/60 Hz
|
|
Nominal amplitude
|
0.5 mm
|
|
Exciting force
|
47/68 kN
|
|
Travel speed
|
0-12 km/h
|
|
Gradeability (vibrate)
|
30%
|
|
Gradeability (not vibrate)
|
40%
|
|
|
|
|
DIMENSIONS
|
|
|
Length
|
2,900 mm
|
|
Width
|
1,484 mm
|
|
Wheelbase
|
2,000 mm
|
|
Height
|
2,700 mm
|
|
Diameter of vibratory drum
|
900 mm
|
|
Width of vibratory drum
|
1,380 mm
|
|
Thickness of drum
|
18 mm
|
|
Ground clearance (minimum)
|
350 mm
|
