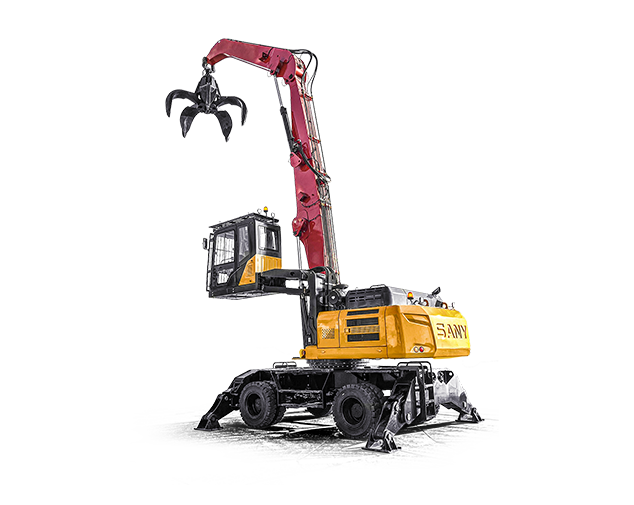

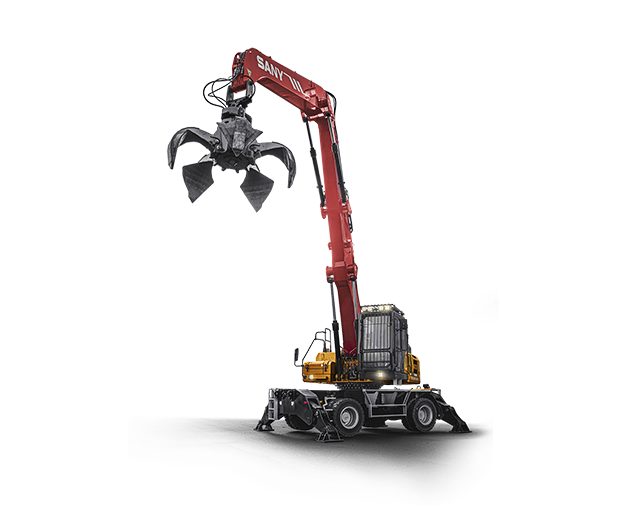

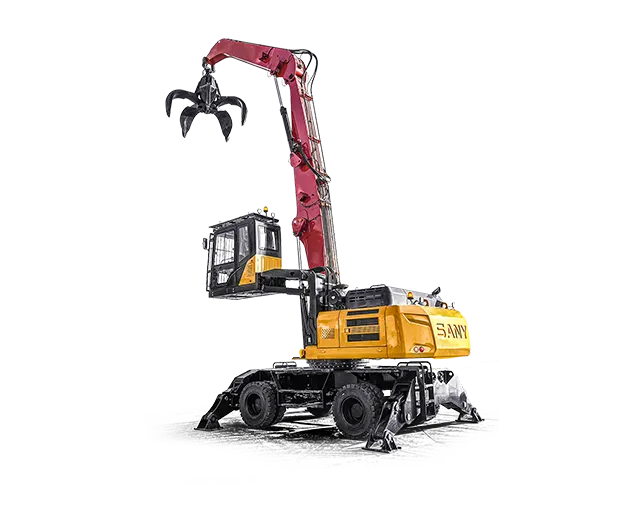

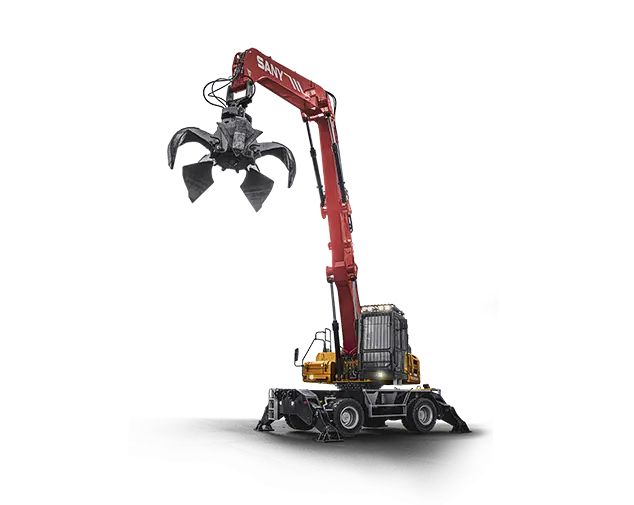

The SMHW30G5 combines robust engineering with intelligent design to ensure reliable, precise material handling across a wide range of applications. Its optimised hydraulic system, excellent lifting capacity, and smooth travel performance make it an ideal solution for intensive duty cycles.
Operators benefit from excellent visibility, ergonomic controls, and a hydraulically elevating cab that enhances safety and productivity on site.
+ Operating weight: 28,500 – 30,500 kg
+ Maximum travel speed: 20 km/h
+ Climbing ability: 35%
+ Operating weight: 28,500 – 30,500 kg
+ Maximum travel speed: 20 km/h
+ Climbing ability: 35%
ENGINE
+ Manufacturer: Cummins
+ Model: 6.7
+ Power output: 145 kW @ 2,000 rpm
+ Maximum torque: 902 Nm
+ Emissions standard: EU Stage V
+ Fuel tank capacity: 465 litres
+ AdBlue capacity: 50 litres
HYDRAULIC SYSTEM
+ Maximum pressure: 320 bar
+ Oil flow: 2 × 260 l/min
+ Hydraulic oil capacity: 230 litres
DRIVE & AXLES
+ Transmission: Hydrostatic drive
+ Speed ranges: 0–5 km/h / 0–20 km/h
+ Axles: Kessler
+ Transmission model: Dana 360
+ Tyres: 10.00‑20 solid rubber
LOADING EQUIPMENT OPTIONS
+ 12 m configuration – Boom: 7.3 m & Stick: 5.1 m
+ 14 m configuration – Boom: 8.6 m & Stick: 5.6 m
The elevating cab provides an excellent overview of the working area, while intuitive controls and ergonomic seating reduce fatigue during long shifts. This ensures consistent productivity and safer operation throughout the working day.
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
